Flexible Circuits & flexible PCB

Rigid Flex PCBs are made of Rigid circuits (FR4 PCB) and Flex circuits. The Rigid circuits (FR4 PCB) are connected with single or multiple flex through PTH (VIA), inside or outside of Flex circuit layer.

CMD Circuits Co., Ltd. provide various sizes of Rigid-Flex Circuit boards, of different layers. All Rigid-Flex Circuits are tested with flying-probe testing machine reflecting all Gerber data to insure continuity and other data requirements. We can provide fast prototype, on time delivery, great quality for you.

Please contact us today for more information about rigid flex circuits.

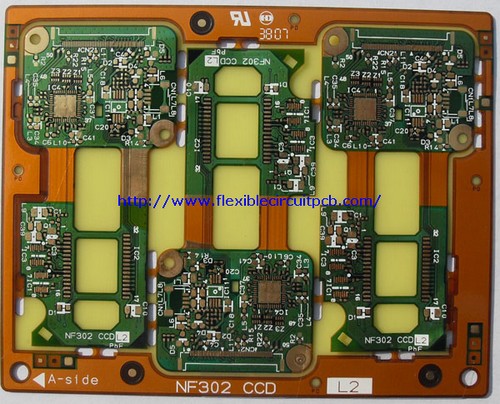

• Rigid Flex PCB1

  P/N：FMD100617
  Size：58*72MM
  Layers：4 layers
  Min trace width/space：0.20mm/0.25mm
  Min hole：0.30mm
  Surface finished：ENIG

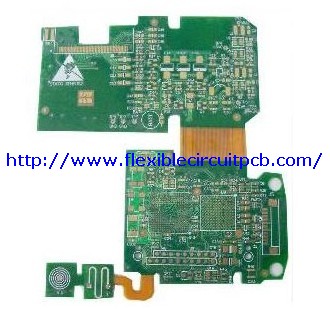

• Rigid Flex PCB2

  P/N：FMD110206
  Size：76*92MM
  Layers：6 layers
  Min trace width/space：0.15/0.15mm
  Min hole：0.25mm
  Surface finished：ENIG

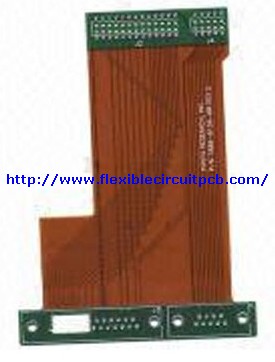

• Rigid Flex PCB3

  P/N：FMD081004
  Size：38*60MM
  Layers：4 layers
  Min trace width/space：0.10mm/0.10mm
  Min hole：0.20mm
  Surface finished：ENIG
